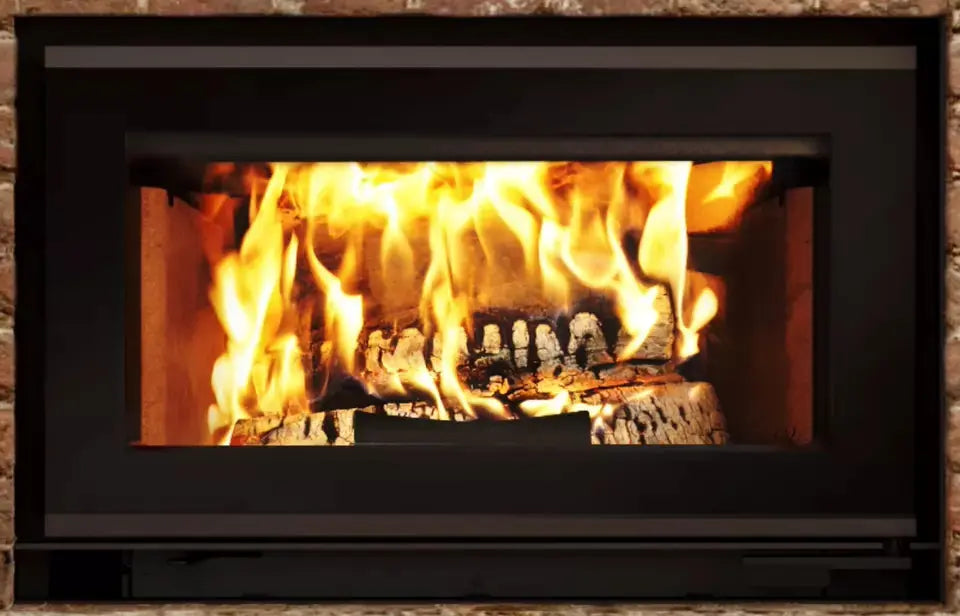

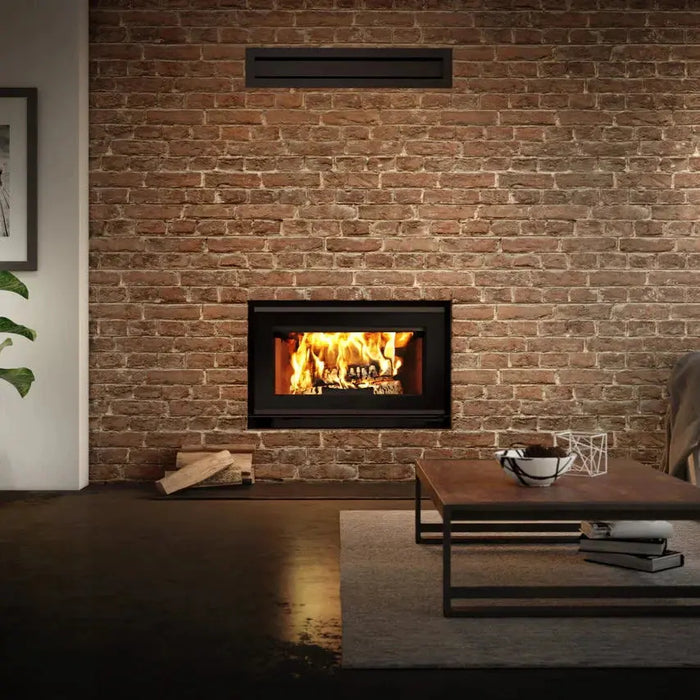

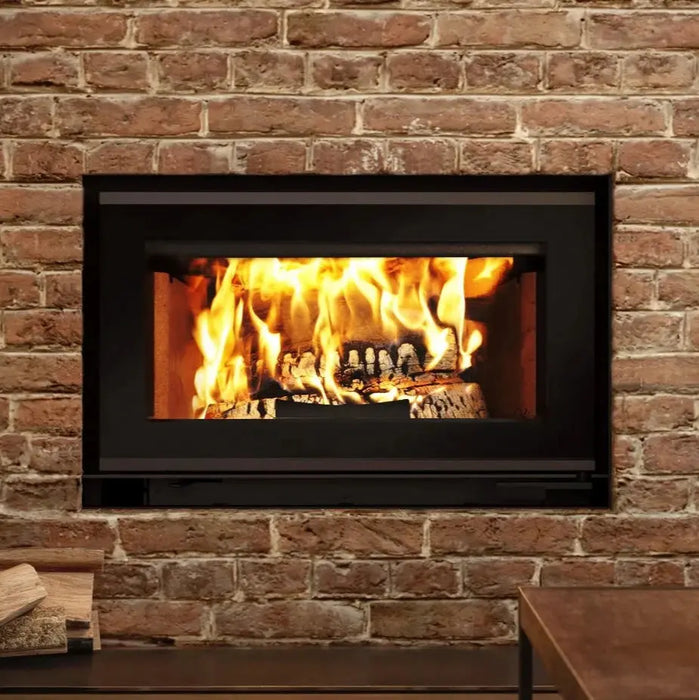

Valcourt Mundo II Wood Burning Fireplace — FP12R
With its sleek lines and refined look, the Valcourt Mundo II Wood Burning Fireplace completely redefines the true nature of wood heating. Its modern design perfectly combines functionality, comfort and safety. Environmentally friendly, this non-catalytic fireplace is EPA 2020 certified at just 1.2 g/h of particulate emissions and heats 750 to 2,200 square feet from a 2.5 cubic foot firebox.
The hot air gravity kit required with the Mundo II will let you harness all the power from this fireplace while respecting the contemporary lines of your decor. The most serious user can also install a forced air kit, which allows better and more efficient heat transfer to rooms located further from the fireplace.
Features
-
Protected industrial design — sleek lines and a refined profile that redefine modern wood heating with a sophisticated architectural presence.
-
Advanced non-catalytic combustion — engineered for powerful heat output and reliable performance, with no catalyst to replace.
-
EPA certified clean-burning technology — 1.2 g/h of particulate emissions, among the lowest of any wood fireplace.
-
Contemporary built-in design — zero clearance at the back, sides and floor for seamless integration into modern and transitional interiors.
-
Gravity air distribution kit (required) — traditional (AC01375K) or modern (AC01389K); enhances natural heat circulation while preserving clean design lines.
-
Optional forced air kit (AC01363) — improves heat transfer to rooms farther from the fireplace; it installs only together with the modern gravity kit (AC01389K).
-
ROBAX® NightFlame ceramic glass option — conceals the firebox when not in use and gives a crystal-clear flame view when burning.
-
80,000 BTU/h maximum output with an 8-hour maximum burn time and a 70% optimum overall efficiency.
What to Order With It
The Mundo II FP12R needs a gravity kit and a fresh air intake to be complete. Choose from each required group below.
Osburn and Valcourt are both built by SBI and share many parts, so some links below open our Osburn listing for the same part number.
Required – gravity kit (choose one):
Required – fresh air intake:
Valcourt’s 2026 price list makes a fresh air intake mandatory on the Mundo II. The intake adaptor comes with the fireplace.
Optional:
Performance
| Maximum heat output (dry cordwood) |
80,000 BTU/h (23.4 kW) |
| Overall heat output range |
12,700 – 60,700 BTU/h (3.72 – 17.79 kW) |
| Recommended heating area |
750 – 2,200 sq ft (70 – 204 m²) |
| Average overall efficiency (HHV) |
64% |
| Average overall efficiency (LHV) |
68% |
| Optimum overall efficiency |
70% |
| Average particulate emissions |
1.2 g/h (EPA / CSA B415.1-10) |
| Average carbon monoxide |
98 g/h |
| Maximum burn time |
8 hours |
| Overall firebox volume |
2.5 cu ft (0.071 m³) |
| EPA loading volume |
1.94 cu ft (0.055 m³) |
| Recommended log length |
16" (406 mm), loaded east-west |
Framing Dimensions
Give these to your builder before framing. The Mundo II is a wide unit and its alternate widths are the widest in the Valcourt range. Valcourt’s 2026 price list makes a fresh air intake mandatory on the FP12R, while the installation manual (46151A, 2025-11-12) still shows it as optional. Because the intake widens the framed opening, we list that width first: frame to it, and call us before framing to the narrower width:
| Framing width — with fresh air intake (required per the 2026 price list) |
75 1/4" (1,911 mm) |
| Framing width — with forced air kit |
87 3/4" (2,216 mm) |
| Framing width — without fresh air intake (installation manual only; call us first) |
51 1/4" (1,302 mm) |
| Height to first header |
41 5/8" (1,057 mm) |
| Framing depth |
25" (635 mm) |
| Total framing height |
76" (1.93 m) |
Clearances to Combustible Material
| Maximum mantel depth |
3" (76 mm) |
| Minimum mantel height above the door opening |
8" (203 mm) |
| Side wall, measured from the door opening |
13" (330 mm) |
| Minimum distance to the wall in front |
36" (914 mm) |
| Minimum ceiling height, measured from the base of the fireplace |
76" (1.93 m) |
| Enclosure — back, sides and floor beneath the fireplace |
0" (zero clearance) |
| Chimney clearance to combustibles |
2" (50 mm) |
| Minimum chimney height |
15' (4.6 m) from the base of the appliance to the chimney cap |
Note the 76" minimum ceiling height — 4" lower than the Lafayette II, which can make the Mundo II the workable option in a room with a low ceiling. The 3" maximum mantel depth still applies.
Specifications
| Specifications |
Details |
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Fuel type |
Dry cordwood |
| Maximum log length |
20" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
UL 103 HT (2100 °F) |
| Minimum chimney height (feet) |
15' |
| Baffle type |
C-Cast or equivalent |
| Approved for a mobile home installation |
No |
| Shipping Weight |
427 lb (193.6 kg) |
| Door type |
Single, glass with steel frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
26 1/8" X 13 3/8" |
| Glass air-wash system |
Yes |
| Overall dimension (Height) |
40 5/8" |
| Overall dimension (Width) |
50 1/4" |
| Overall dimension (Depth) |
27" |
| Door opening – dimension (Height) |
10 3/8" |
| Door opening - dimension (Width) |
25 3/8" |
| Firebox – dimension (Height) |
12 1/8" |
| Firebox – dimension (Width) |
20 3/8" |
| Firebox – dimension (Depth) |
12 7/8" |
| Moulded refractory bricks |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| USA standard (emissions) |
EPA |
| USA standard (safety) |
UL 127 |
| Tested and listed as per applicable standards |
By an accredited laboratory |
| Warranty |
Limited lifetime |
