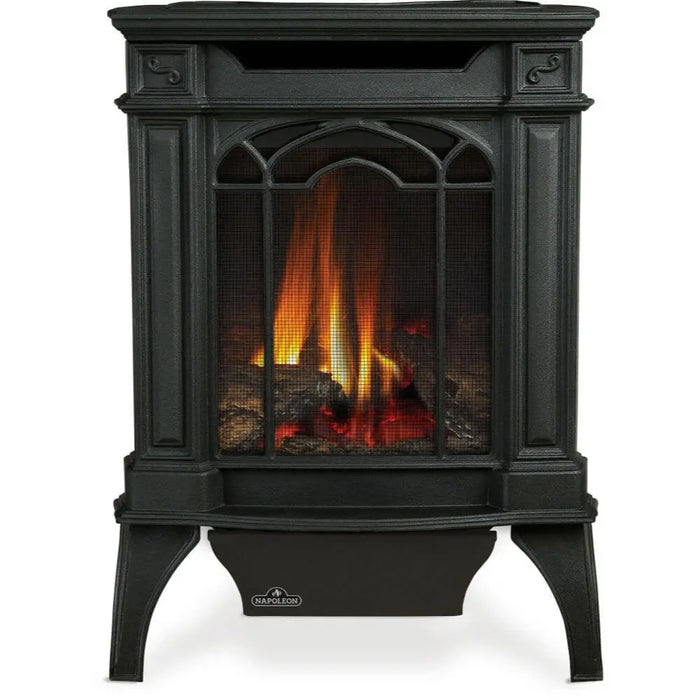

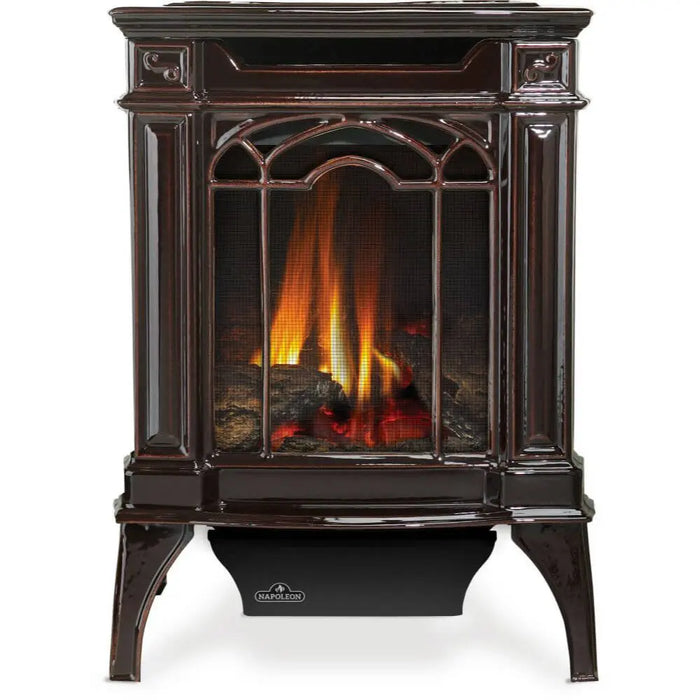

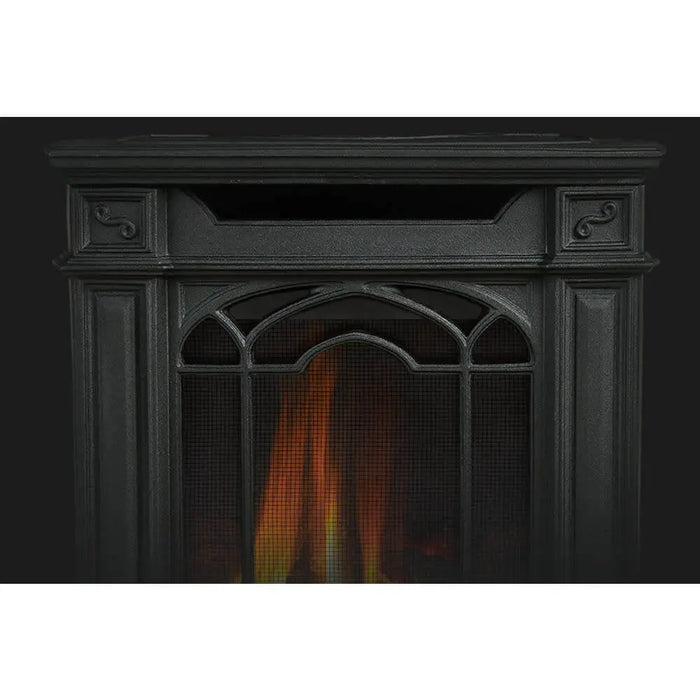

Napoleon Arlington Direct Vent Gas Stove

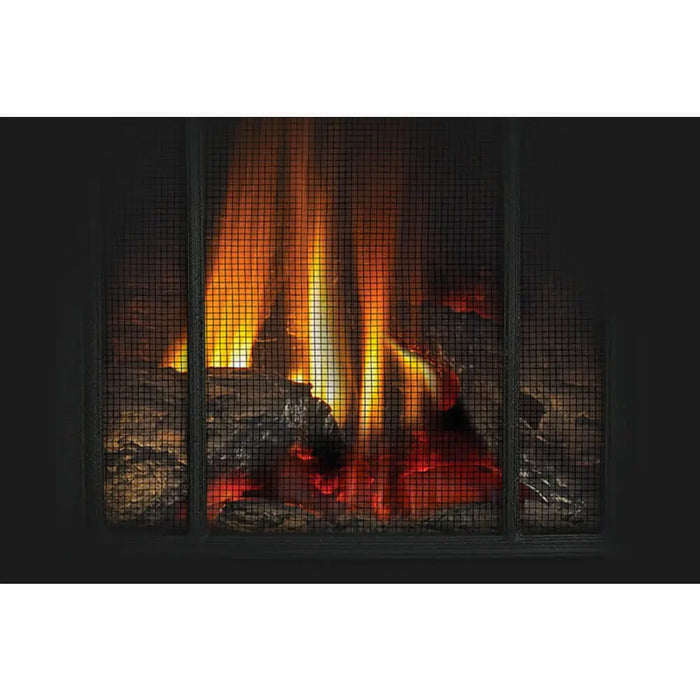

The Napoleon Arlington™ is a compact cast iron direct vent gas stove sized for smaller rooms. Its PHAZERAMIC™ burner and PHAZER® log set give the look of a real wood fire behind heat radiating ceramic glass, and a MIRRO-FLAME™ porcelain reflective rear panel adds depth to the flames.
The Arlington is rated up to 20,000 BTU/hr input, vents at 45° through 4" / 7" direct vent pipe and is certified as a vented decorative gas appliance. Millivolt models need no electricity to run; electronic ignition models have a battery back-up for power failures. A blower kit is optional.
Key Features
- Up to 20,000 BTU/hr input
- PHAZERAMIC™ burner system with PHAZER® log set
- MIRRO-FLAME™ porcelain reflective radiant rear panel
- Heat radiating ceramic glass with standard safety barrier
- Flame/heat adjustment
- Safety “pilot light on” indicator
- 100% SAFE GUARD™ gas control system
- Electronic ignition with battery back-up, or millivolt ignition that needs no electricity
- Firestop included
- Approved for mobile home installation
- President’s Limited Lifetime Warranty
What to Order With It
The Arlington is complete as shipped. Popular add-ons:
Optional:
Specifications
- Type: Direct Vent
- Fuel Type: Natural Gas (propane conversion kit available)
- Dimensions (H x W x D): 25 3/8" x 19 1/4" x 18 1/2"
- Viewing Area: 14" x 13"
- Venting Diameter: 45° 4" / 7"
- Ignition System: Electronic or Millivolt
- Max. Input: 20,000 BTU/hr
- Blower: Optional (GS-65KT)
- Certification: Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50)
- Mobile Home Approved: Yes
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Stoves – President’s Limited Lifetime Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
