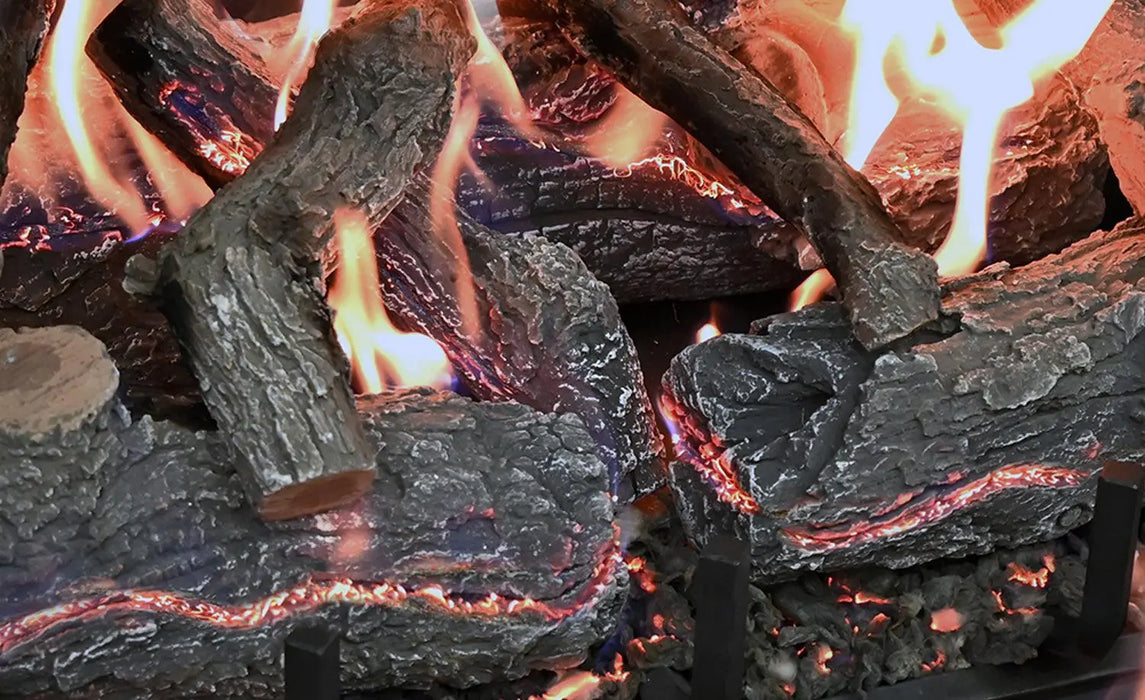

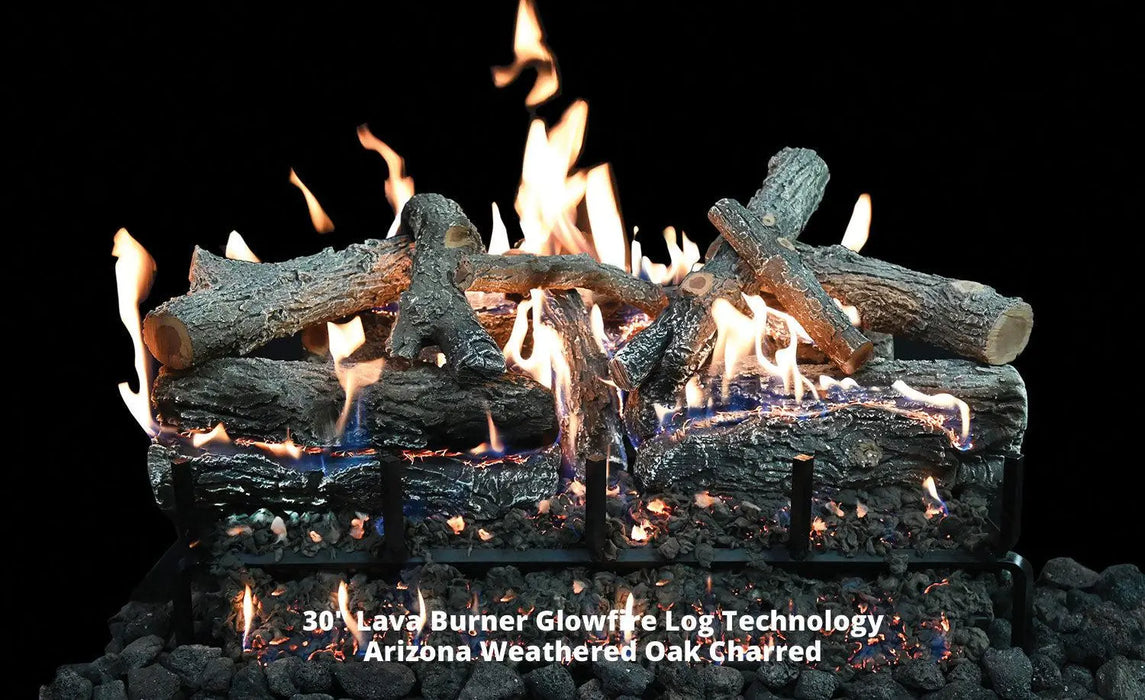

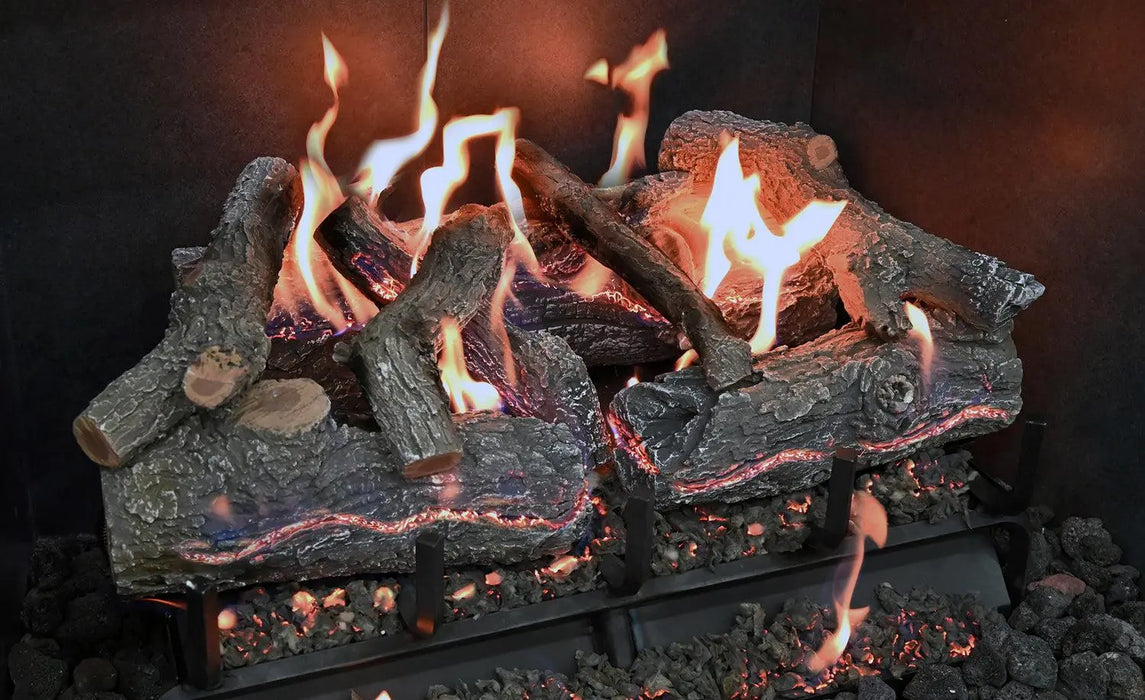

Grand Canyon Lava Front View 30" Variable Electronic Ignition Natural Gas Vented Burner
The Grand Canyon Lava Front View 30" Burner (model LAFV-30-VEN) is a vented natural gas burner made for GlowFire logs, which carry the flame through ports in the logs themselves for a fuller fire on less gas. This version has variable-flame SIT Proflame electronic controls, so you can raise and lower the flame. The valve and controls are concealed in the burner.
The burner is built for one gas, so order LAFV-30-VEP if you need propane. It does not run without a GlowFire log set, which is ordered separately.
What's Included
Burner
Lava rock
Black embers
Flex line
Damper clamp
Manual and rating plate
The installation manual also shows a remote control kit in the parts list. The price guide does not list a remote as included, so check with us if you are counting on one.
Key Features
30" burner for GlowFire logs, 75,000 BTU on high and 45,000 BTU on low
Variable flame height with SIT Proflame electronic controls; receiver takes 4 AA batteries
Concealed valve and control system
Gas specific
Indoor fireplaces, or outdoor under a patio cover
Vented: the fireplace damper must be locked open with the included damper clamp
Tested to ANSI Z21.60 for decorative gas appliances in solid-fuel fireplaces
GlowFire logs are required and sold separately (see below)
What to Order With It
The burner ships with lava rock and embers. It needs a GlowFire log set in the same size to operate.
Extra Embers (GLE-6B black glowing embers, PBE-1 platinum bright embers)
Specifications
Model Number
LAFV-30-VEN
Size
30"
Fuel Type
Natural Gas
Vent Type
Vented
Control System
Variable, SIT Proflame
BTU Rating High
75,000 BTU/hr
BTU Rating Low
45,000 BTU/hr
Manifold Pressure
3.5" W.C.
Inlet Pressure Minimum
5" W.C.
Inlet Pressure Maximum
10.5" W.C.
Gas Inlet
1/2" NPT
Batteries
4 AA for the receiver, 3 AAA for the remote
Use
Indoor, or outdoor under a patio cover
Standard
ANSI Z21.60
The BTU ratings here are from the 2026 price guide and the specification sheet. The installation manual prints slightly different ratings; call us if the exact input matters for your gas supply.
Minimum Fireplace Dimensions
Front Width
40"
Back Width
30"
Depth
18"
Height
26"
For a covered-patio install the manual calls for a roof overhang in front of the fireplace, and cover to each side, of at least half the fireplace height. Keep furniture at least 36" from the front. Not for installation in manufactured or mobile homes.
Warranty
Burner: lifetime warranty against manufacturing defects or breakage when installed indoors by a professional installer; one year if installed outdoors. Paint finish is not covered. Valves, remotes and receivers: two years. Batteries are not covered. Warranty is limited to the original purchaser.
