Fire Magic Aurora Built-In Gas Double Side Burner

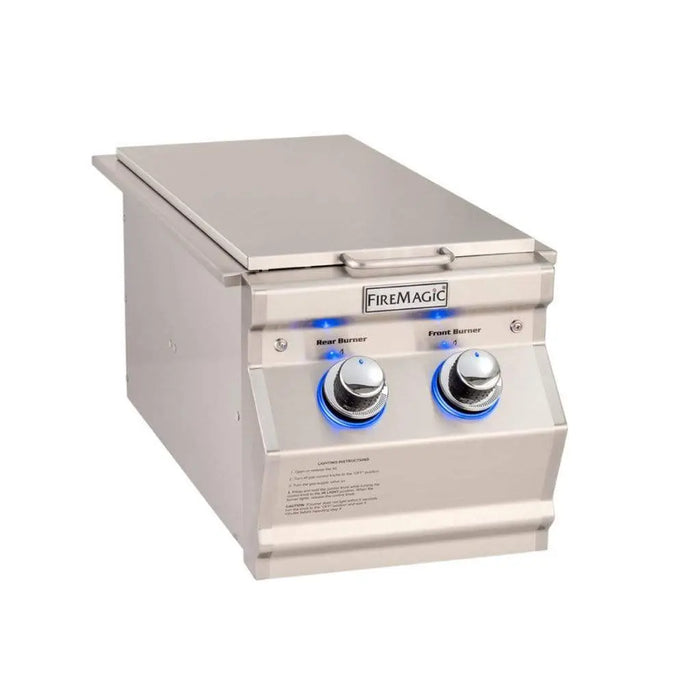

The Fire Magic Aurora Double Side Burner (order numbers 32817N natural gas / 32817P propane) is a built-in companion cooker with two 15,000 BTU burners (30,000 BTU total) under a stainless steel lid, for sauces and side dishes next to the grill.

It needs 120V power: it plugs into the transformer of a matching Aurora grill, or into a separate power supply (24182-18) when it is installed on its own or too far from the grill. It may be installed in combustible framing with at least 1/2" of airspace between all sides of the unit and any combustible material.

Key Features

• Two burners, 15,000 BTU each (30,000 BTU total), with independent controls

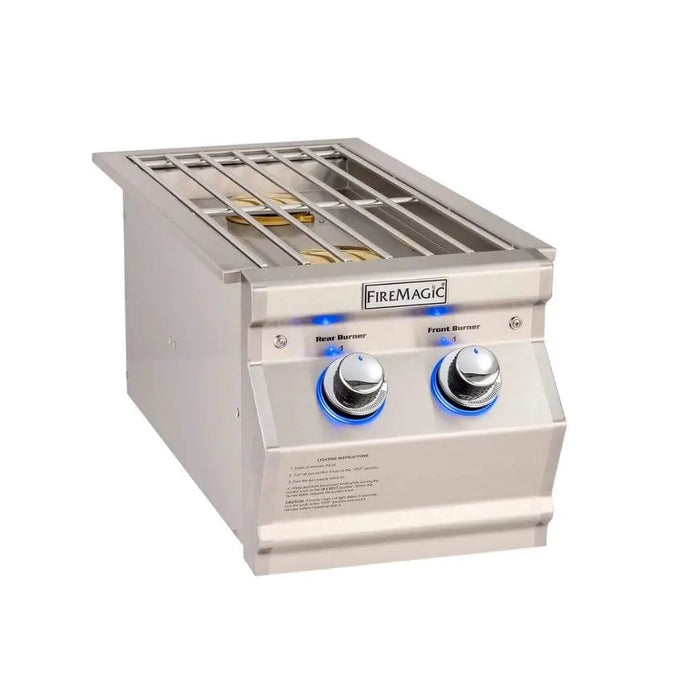

• Stainless steel lid; cooking grid included
• Face that matches Aurora grills
• Back-lit control knobs
• Outdoor use only

What to Order With It

Required when not powered from a matching grill:

• Aurora Power Supply (24182-18) - for a stand-alone installation or when the burner is too far from the grill

Optional:

• Black Vinyl Cover (3276-5F)
• Porcelain Cast Iron Griddle (3513A)
• Gas connection: Natural Gas Connector Package (3021), or Propane Connector Package (3023)

Specifications

• Order numbers: 32817N natural gas / 32817P propane
• Fuel: Natural gas or propane (order one)
• Burners: 2 x 15,000 BTU (30,000 BTU total)
• Cut-out (W x D x H): 11 1/2" W x 22 3/4" D x 11 1/2" H in a non-combustible enclosure; 12" W x 23 1/4" D in a combustible enclosure
• Electrical: 120VAC, 15 amp minimum, GFCI grounded three-wire receptacle (through the grill transformer or power supply 24182-18)
• Gas supply pressure: Natural gas 7" w.c. normal (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max)
• Clearance to combustible construction: 12" from a combustible rear wall, 12" sides
• Overhead: 5 ft minimum from countertop to overhead construction
• Use: Outdoor use only
• Shipping weight: 28 lbs
• Carton: 31 3/4" L x 18 3/4" W x 15 3/4" H

Documents & Downloads

• Installation & Owner's Manual
• Fire Magic Specifications Guide
• Fire Magic Catalog

Warranty

• Three (3) years: side burners and all other components (except ignition systems and electronic parts)
• One (1) year: ignition systems (except batteries), electronic components and accessories
• Fire Magic pays a warranty labor allowance for the first two years

Warranty applies to the original purchaser with proof of purchase, for single family residential use.

^*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
