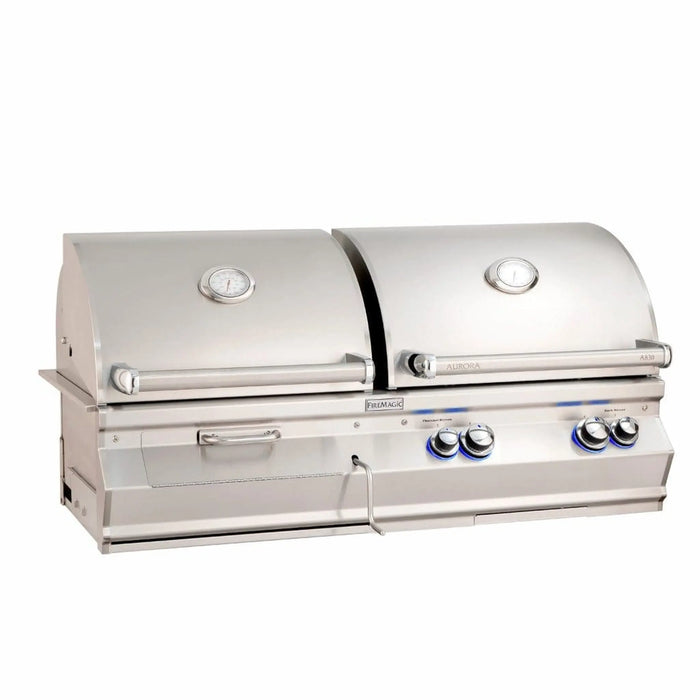

Fire Magic 46" 3-Burner Aurora A830i Built-In Gas/Charcoal Combo Grills w/ Analog Thermometers

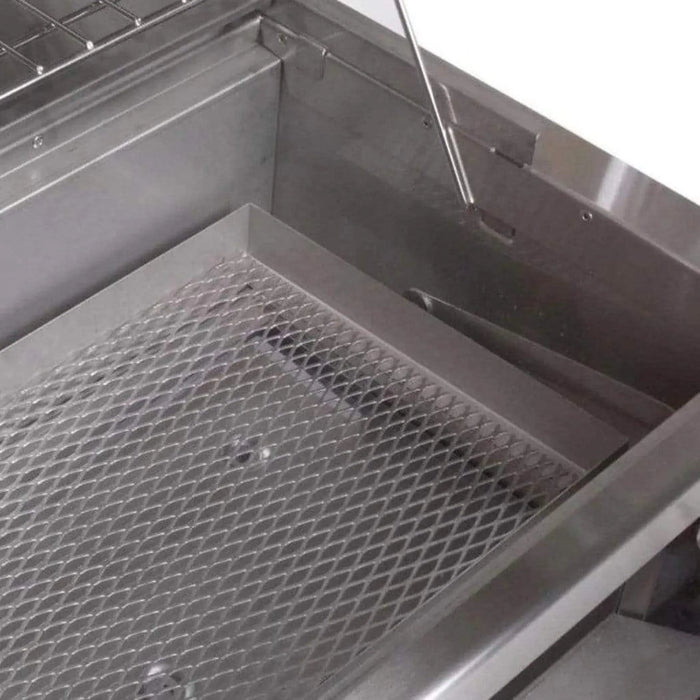

The Fire Magic Aurora A830i is a built-in combination grill with a gas side and a charcoal side under one hood line. The gas side has a 24" x 18" (432 sq. in.) cooking area on cast stainless steel burners; the charcoal side has a 22" x 18" (396 sq. in.) cooking area with an adjustable charcoal pan, and its charcoal is lit by a 26,000 BTU gas burner. Total input is 76,000 BTU, including the charcoal lighting burner.
Versions with order numbers beginning A830i-8 add an 11,000 BTU rotisserie backburner on the gas side; an infrared sear burner on the left is available in place of a conventional burner (order numbers with "L"). The grill needs a 120V GFCI outlet for the hot surface ignition and lights, and is sold as natural gas or propane: choose the fuel when you order.
This grill is not insulated. The manual requires the island to be built entirely of non-combustible materials, including the countertop; there is no insulating liner for the A830i.
Key Features
- Gas side: 24" x 18" (432 sq. in.) of Diamond Sear cooking grids over cast stainless steel burners
- Charcoal side: 22" x 18" (396 sq. in.), with the charcoal lit by a 26,000 BTU gas burner
- 76,000 BTU total, including the charcoal lighting burner

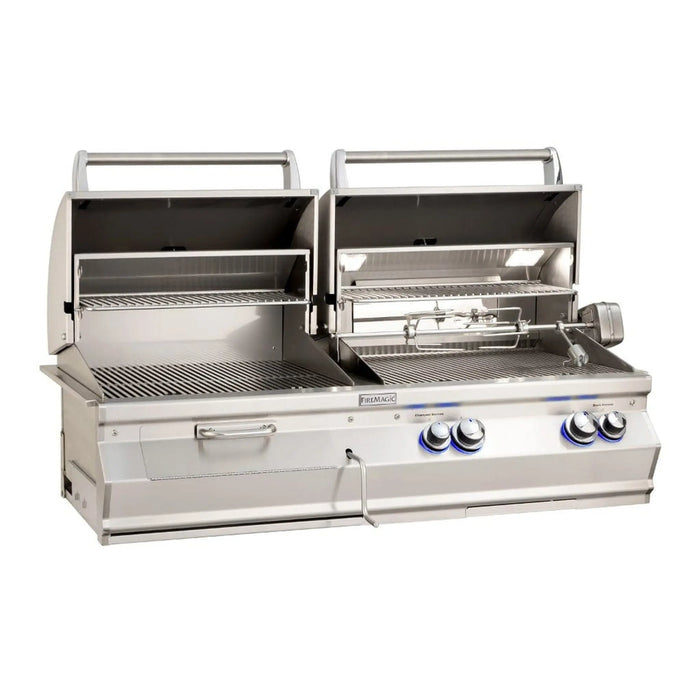

- Optional 11,000 BTU rotisserie backburner on the gas side (order numbers beginning A830i-8)

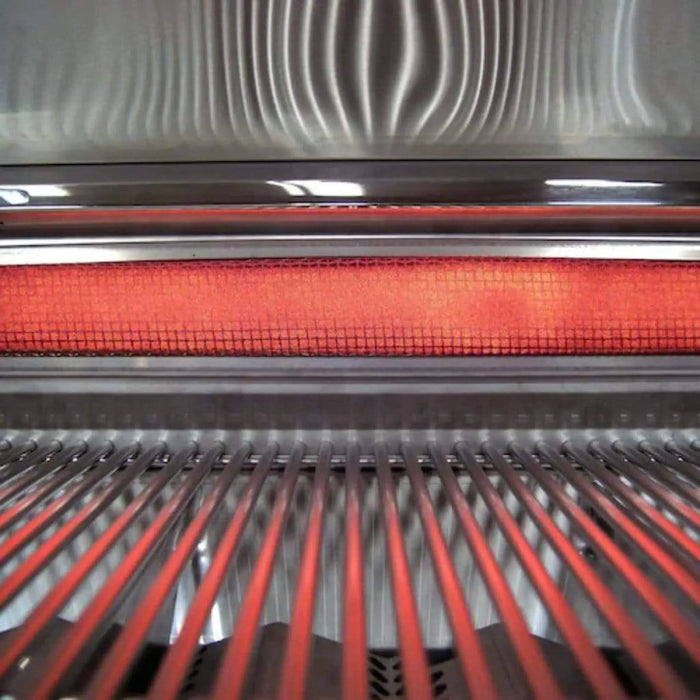

- Optional infrared sear burner on the left side (order numbers with "L")

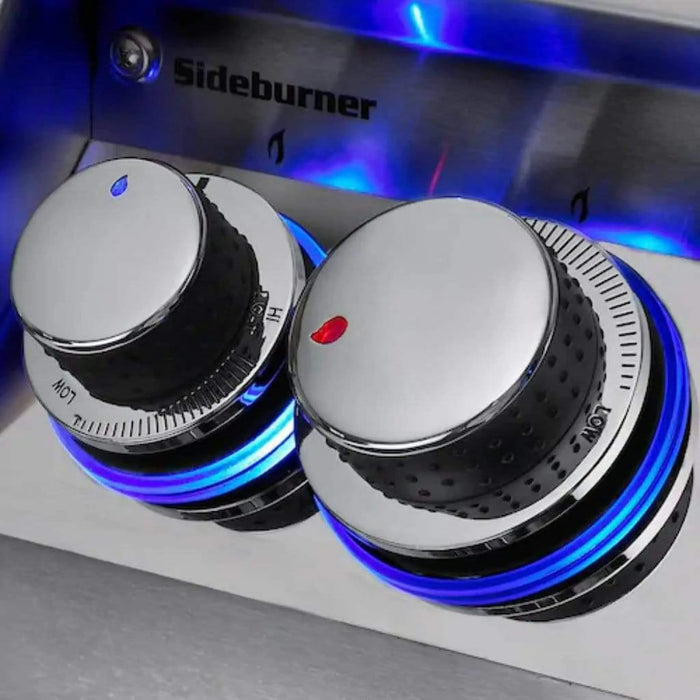

- 120 VAC / 12 volt hot surface ignition with back-lit control knobs

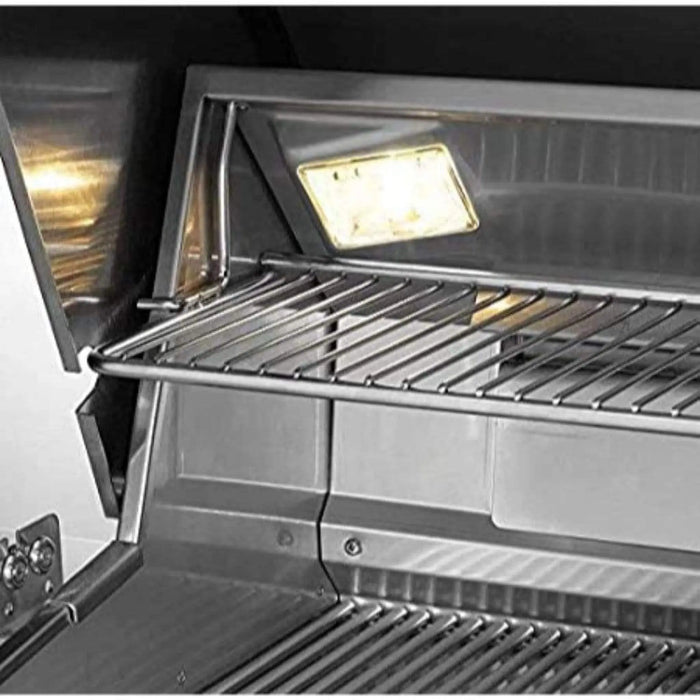

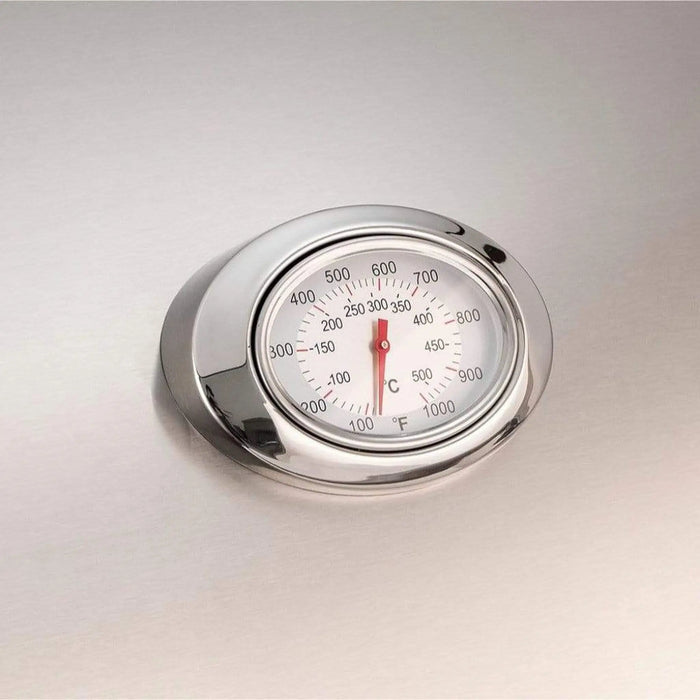

- Analog thermometers; interior halogen lights on the gas side
- Made in the USA of 304 stainless steel; CSA / ANSI Z21.58 certified
What to Order With It
Order the items below to suit your island.
Required:
- A non-combustible island, including the countertop: the A830i is not insulated and no insulating liner is made for it
Optional:
Specifications
- Order numbers, natural gas: A830i-8EAN-CB, A830i-8LAN-CB, A830i-7EAN-CB, A830i-7LAN-CB
- Order numbers, propane: A830i-8EAP-CB, A830i-8LAP-CB, A830i-7EAP-CB, A830i-7LAP-CB
- Model code key: "-8" rotisserie backburner (gas side), "-7" no backburner; "E" all conventional burners, "L" infrared burner on the left side
- Size code: A83
- Fuel: Natural gas or propane (order one)
- Cooking area: Gas side 24" x 18" (432 sq. in.); charcoal side 22" x 18" (396 sq. in.)
- Input: 76,000 BTU including the 26,000 BTU charcoal lighting burner
- Rotisserie backburner: 11,000 BTU, gas side only (-8 versions); 87,000 BTU total
- Cut-out (W x D x H): 50 1/4" W x 19 1/2" D x 11 1/2" H
- Control panel width: 51 1/4" (not included in the cut-out width)
- Enclosure: Non-combustible materials only, including the countertop (grill is not insulated)
- Ignition: 120 VAC / 12 volt hot surface
- Electrical: 120VAC, 15 amp minimum, GFCI grounded three-wire receptacle with a weather-proof in-use cover
- Gas supply pressure: Natural gas 7" w.c. normal (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max)
- Clearance to rear wall: 18" combustible, 14" protected combustible, 4" non-combustible
- Overhead construction: Not under combustible overhead construction unless installed with a UL 710 approved heavy duty vent hood; 5 ft minimum from countertop to overhead construction
- Shipping weight: 300 lbs
- Carton: 60 1/4" L x 32 1/2" W x 33" H
- Certification: CSA / ANSI Z21.58
- Made in: USA
The cut-out is the opening in the island countertop; every built-in grill also has a hanger that extends beyond these dimensions. Confirm the opening against the installation manual before cutting.
Documents & Downloads
Warranty
- Lifetime: cast stainless steel burners, Choice stainless steel U-shaped burners, Diamond Sear cooking grids and stainless steel housings
- Fifteen (15) years: brass valves, inner liners, manifold assemblies and backburner assemblies (except ignition parts)
- Five (5) years: flavor grids and infrared burners in the grill
- Five (5) years: charcoal stainless steel grill parts, except the charcoal pan, charcoal grid, thermometer and ash tray (one year)
- Three (3) years: all other grill components (except ignition and electronic parts)
- One (1) year: ignition systems (except batteries), electronic components including lights and thermometers, and accessories
- Fire Magic pays a warranty labor allowance for the first two years
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
