Fire Magic 30" 3-Burner Aurora A660i Built-In Gas Grill w/ Analog Thermometer
The Fire Magic Aurora A660i is a 30" built-in gas grill without a rotisserie backburner (order numbers A660i-7EAN natural gas / A660i-7EAP propane). Its 3 cast stainless steel burners are rated at 75,000 BTU under patented Diamond Sear cooking grids, for a 30" x 22" (660 sq. in.) cooking area, with an analog thermometer in the lid and interior halogen lights.
An infrared sear burner on the left side is available in place of a conventional burner (order numbers with "L"), and a Magic View window in the lid (order numbers ending "-W"). The grill needs a 120V GFCI outlet for the hot surface ignition and lights, and is sold as natural gas or propane: choose the fuel when you order.
Key Features
- 75,000 BTU from 3 cast stainless steel "E" burners
- 30" x 22" (660 sq. in.) of heavy duty Diamond Sear cooking grids
- Optional infrared sear burner on the left side (order numbers with "L")
- Optional Magic View window in the lid (order numbers ending "-W")
- 120 VAC plug-in supply with 12 volt transformer; push-to-light hot surface ignition with flash tubes

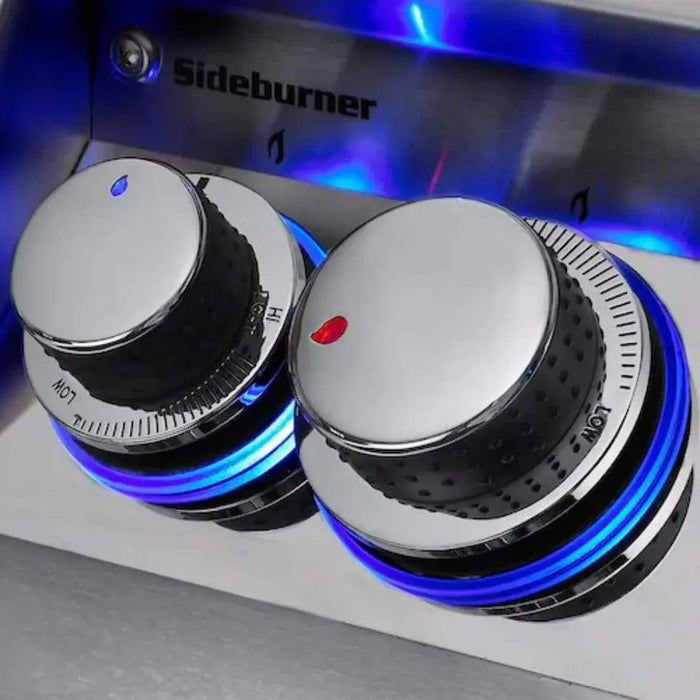

- Polished, back-lit control knobs on a seamless control panel with polished trim
- Analog thermometer in the lid reading up to 1000 F
- 12 volt halogen interior oven lights

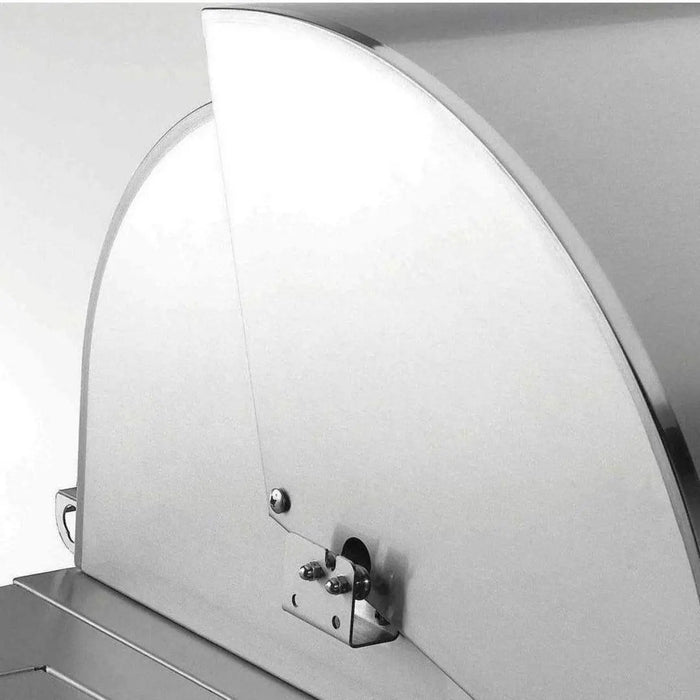

- Seamless double wall 90 degree hood with Feather-Lite easy lift lid

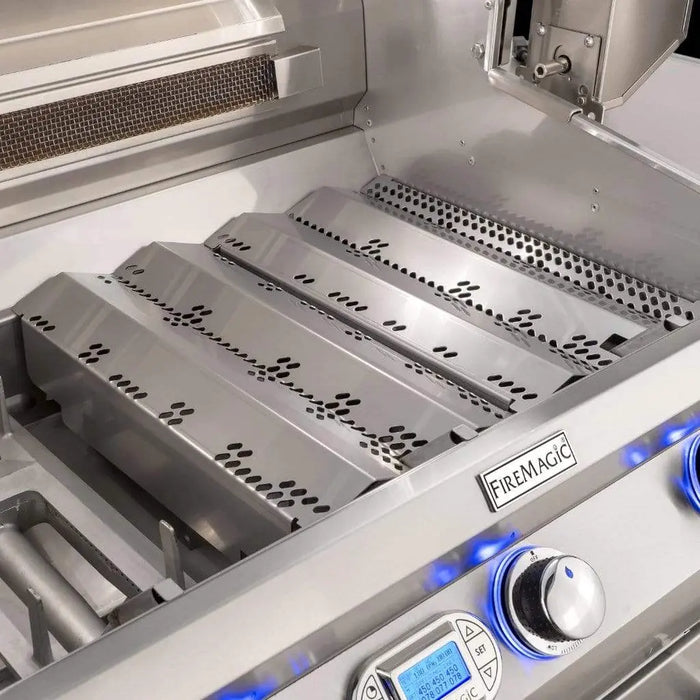

- Heavy gauge stainless steel flavor grids and adjustable warming rack
- 10" drip tray with disposable foil tray liners; 12" deep firebox
- Pre-assembled 1/2" x 36" stainless steel gas flex connector and cooking grid lifter
- Made in the USA of 304 stainless steel; CSA / ANSI Z21.58 certified
What to Order With It
Order the items below to suit your island.
Required for a combustible enclosure:
-
Insulating Liner (3176-52) - the manual requires it whenever the island is built from combustible materials
Optional:
Specifications
- Order numbers, natural gas: A660i-7EAN, A660i-7EAN-W, A660i-7LAN, A660i-7LAN-W
- Order numbers, propane: A660i-7EAP, A660i-7EAP-W, A660i-7LAP, A660i-7LAP-W
- Model code key: "-8" backburner and rotisserie kit, "-7" no backburner; "E" all conventional burners, "L" infrared burner on the left side; "-W" Magic View window
- Size code: A66
- Fuel: Natural gas or propane (order one)
- Cooking area: 30" x 22" (660 sq. in.)
- Main burners: 75,000 BTU (3 cast stainless steel burners)
- Cut-out (W x D x H): 31 1/4" W x 23 1/2" D x 11 1/2" H
- Control panel width: 33" (not included in the cut-out width)
- Thermometer: Analog, in the lid
- Ignition: 120 VAC / 12 volt hot surface
- Electrical: 120VAC, 15 amp minimum, GFCI grounded three-wire receptacle
- Gas supply pressure: Natural gas 7" w.c. normal (5" min, 10 1/2" max); propane 11" w.c. normal (10" min, 13" max)
- Clearance to combustible construction: 18" rear (14" to a protected combustible wall, 4" to a non-combustible wall), 18" sides, 24" corners
- Overhead construction: Not under combustible overhead construction unless installed with a UL 710 approved heavy duty vent hood (1200 CFM minimum exhaust fan); 5 ft minimum from countertop to overhead construction
- Shipping weight: 225 lbs
- Carton: 38 3/4" L x 31 1/2" W x 33 1/2" H
- Certification: CSA / ANSI Z21.58
- Made in: USA
The cut-out is the opening in the island countertop; every built-in grill also has a hanger that extends beyond these dimensions. Confirm the opening against the installation manual before cutting.
Documents & Downloads
Warranty
- Lifetime: cast stainless steel burners, Choice stainless steel U-shaped burners, Diamond Sear cooking grids and stainless steel housings
- Fifteen (15) years: brass valves, inner liners, manifold assemblies and backburner assemblies (except ignition parts)
- Five (5) years: flavor grids and infrared burners in the grill
- Three (3) years: all other grill components (except ignition and electronic parts)
- One (1) year: ignition systems (except batteries), electronic components including lights and thermometers, and accessories
- Fire Magic pays a warranty labor allowance for the first two years
Warranty applies to the original purchaser with proof of purchase, for single family residential use.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
