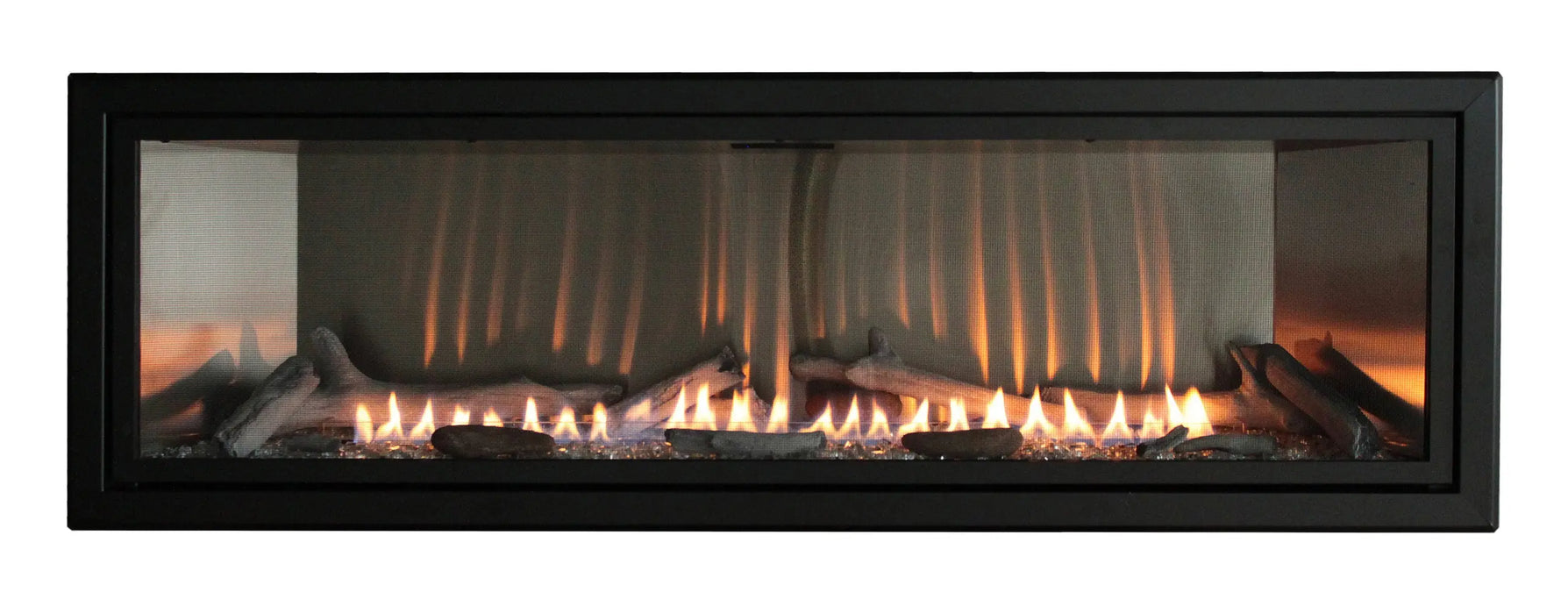

Empire 48" Boulevard Vent-Free Linear Gas Fireplace

Choose the Boulevard 36 single-sided (28,000 BTUs) or Boulevard 48 single-sided (32,000 BTUs). All systems are available in Propane and Natural Gas.

Empire 48" Boulevard Vent-Free Linear Gas Fireplace comes with your choice of Millivolt Ignition System, or an Intermittent Pilot Ignition. The millivolt system features a piezo igniter and a standing pilot, eliminating the need to run electrical wiring. The intermittent pilot system features an electronic ignition with no standing pilot.

Features

• Product Dimensions: 52 3/16" W x 22 1/2" H x 11" D
• Intermittent pilot ignition includes battery back-up and multi-function thermostatic remote
• Millivolt ignition comes with On/Off remote
• Up to 32,000 BTU

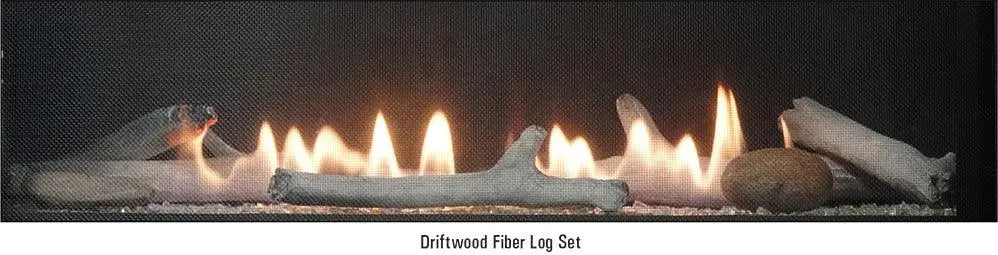

• Optional Log Set
• Requires + 8-lbs of media, sold separately
• Optional Liners
• Optional Light Kit
• Weight: 105 lbs
• Crushed Glass may be installed with or without the log set (use about 3 sq. ft.)
• Includes:
  • Barrier
  • Thermostat Remote (IP Models) or ON/OFF Remote (Millivolt Models)
  • Battery Relocation Kit (IP models)

A fine mesh barrier screen comes standard with each model.

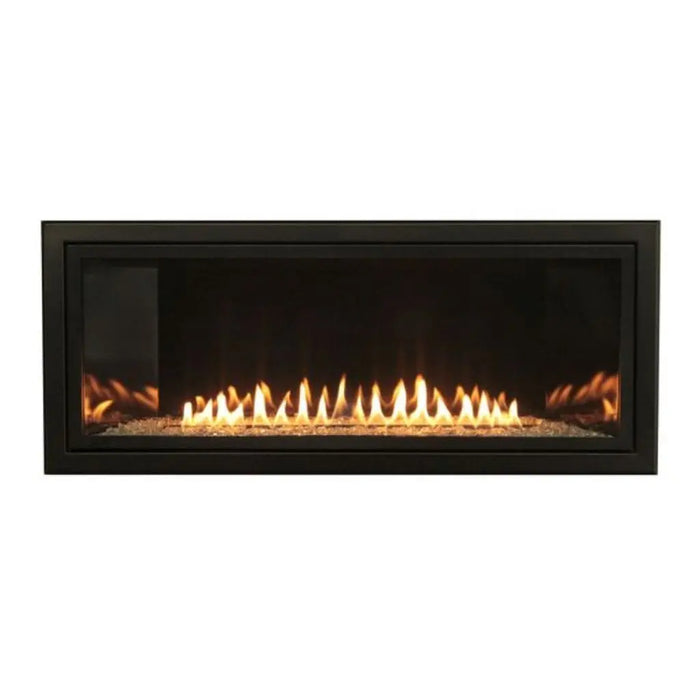

Boulevard 36-inch Linear Fireplace with Black Porcelain Liner, Clear Crushed Glass, and 1-1/2-inch Beveled Front in Matte Black

Boulevard 48-inch Linear Fireplace with Stainless Steel Liner, Clear Crushed Glass, and 3/4-inch Trim in Matte Black

PROFLAME - IP CONTROL SYSTEM REMOTE (included with IP Model)

TRANSMITTER (REMOTE CONTROL WITH LCD DISPLAY) The Proflame Transmitter uses a streamline design with a simple button layout and informative LCD display. The Transmitter is powered by 3 AAA type batteries. A Mode Button is provided to Index between the features and a Thermostat Button is used to turn on/off or index through thermostat functions.

What to Order With It

Optional – Crushed glass (about 2.5 sq. ft. for the 48"; not required on this size):

• Crushed Glass, Clear Frost, approx. 1 sq. ft. (DG1CLF)
• Crushed Glass, Copper Reflective, approx. 1 sq. ft. (DG1BCR)
• Crushed Glass, Bronze Reflective, approx. 1 sq. ft. (DG1BZR)
• Crushed Glass, Blue Clear, approx. 1 sq. ft. (DG1BUC)
• Crushed Glass, Black Polished, approx. 1 sq. ft. (DG1BKP)

Optional – Accessories:

• Lighting Kit, 120 V, Req switch or rheostat (LK5)

Optional – Fronts and frames:

• Beveled Frame, .75-inch, Matte Black (DF481VBL)
• Beveled Frame, 1.5-in., Matte Black (DF482VBL)

Optional – Decorative media:

• Droplets, 1/2-in., Glacier Ice, approx. 1 sq. ft. (DG1GC)
• Decorative Rocks Assortment, approx. 1 sq. ft. (DR1FMA)
• Decorative Pebble Assortment, approx. 1/2 sq. ft. (DRFPA)
• Drops 1-in., Onyx Solid, approx. 1 sq. ft. (DG1NXS)

Optional – Liners:

• Liner with Burner Cover, Black Porcelain (VBP48LBKR)
• Liner, Stainless Steel (liner only) (VBP48LSS)
• Liner with Burner Cover, White Porcelain (VBP48LBWR)

FRBC - ON/OFF REMOTE CONTROL (included with Millivolt Model)

FRBC - BATTERY OPERATED ON/OFF REMOTE CONTROL Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve) Does not require running wire to the fireplace Operates during power outages

Documents

• Brouchers
• Installation Manual

Installation Requirements

• Clearances to combustibles: 36" minimum to a perpendicular combustible side wall; 36" minimum to the ceiling and enclosure top
• Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
• Venting: Vent-free. No chimney, flue or vent pipe is required.
• Minimum room size: The room must have at least 50 cubic feet of volume per 1,000 Btu/hr of input (the manual's "unconfined space" rule). At the 32,000 Btu/hr maximum input that is at least 1,600 cubic feet.
• Bedrooms and bathrooms: Not permitted. The manual prohibits installing an unvented fireplace rated over 10,000 Btu/hr in a bedroom or bathroom (over 6,000 Btu/hr in a bathroom). In the Commonwealth of Massachusetts, unvented propane and natural gas-fired space heaters are prohibited in bedrooms and bathrooms.
• Gas input (BTU/hr): Natural gas 32,000 max / 21,000 min; propane 32,000 max / 23,000 min (millivolt and intermittent pilot models alike)
• Power: The remote receiver on intermittent pilot models (FP90) uses 4 AA batteries. The manual lists a 120V, 60Hz, 1 Amp electrical supply for lights.
• Installation: Must be installed by a qualified installer per the installation manual and local codes.
