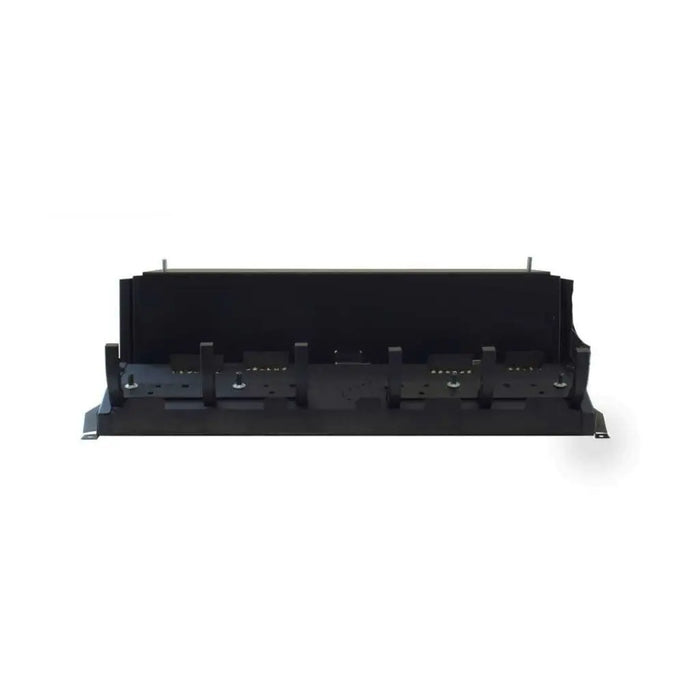

Designed to fit see-through and peninsula fireboxes, Empire Vent-Free Slope Glaze Vista Burners provide a great view from any angle. Ceramic beads inside the burner tumble the gas to create exceptionally realistic flame movement.

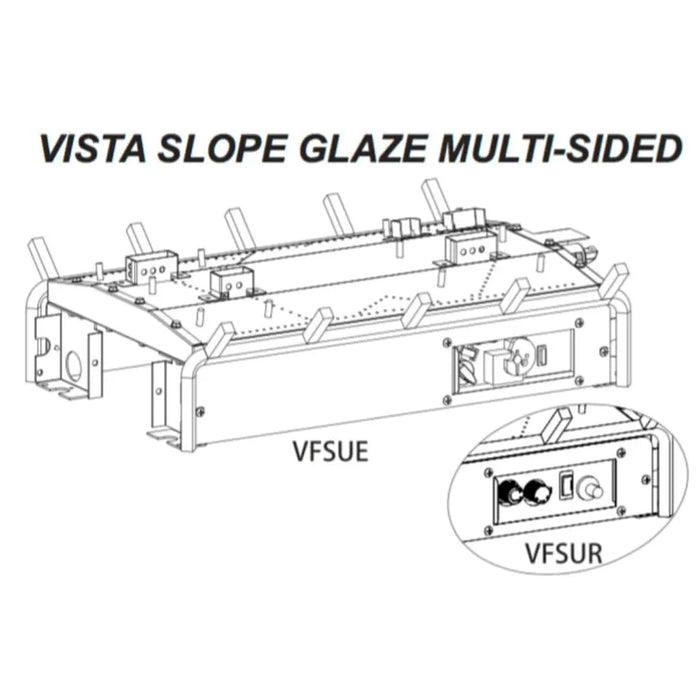

The Vista Slope Glaze Burner is designed for use in a multi-sided, peninsula or see-thru fireplace or firebox. The Slope Glaze Burner features concealed controls and includes an intermittent pilot and thermostat remote control (remote included).

Slope Glaze Multi-Sided Burner with Intermittent Pilot Valve raises the standard for flame presence while integrated ceramic beads tumble the gas to form an ultra-realistic fire. The See-Through Vent-Free Slope Glaze Burner offers 18, 24 and 30-Inch options that can reach up to 40,000 BTU while the Intermittent Pilot Valve (with thermostat variable remote control) allows for easy control over your flame presence.

Features

• Ignition Type: Intermittent Pilot
• BURNER ONLY: Slope Glaze Vista Multi-Sided
• Internal Ceramic Beads - Tumbles gas to create a dancing flame every time
• See-Through Burner - Accommodates double sided log sets for your see-through fireplace
• Intermittent Pilot Valve: Includes a thermostat variable remote control
• Burner Size - 18, 24, and 30-Inch burner offerings
• Fuel Type - Choose from Natural Gas or Propane

Installation Requirements

• Approved for: Installation only in a solid-fuel burning masonry or UL 127 factory-built fireplace, or in a listed ventless firebox enclosure.
• Venting: Vent-free: no chimney or vent needed when installed as a vent-free heater. May also be installed vented; the damper clamp must then be used. Thermostats are for vent-free installations only.
• Clearances to combustibles: Sides of the fireplace opening at least 6" from any combustible wall; ceiling at least 41" above the fireplace opening.
• Mantel clearance: Non-combustible material must extend at least 12" above the fireplace opening (at least 8" with the optional hood). Follow the mantel chart in the installation manual for any combustible mantel.
• Minimum room size: The room must have at least 50 cubic feet of volume per 1,000 Btu/hr of input (unconfined space). At maximum input that is at least 18": 1,800 cu ft; 24": 1,900 cu ft; 30": 2,000 cu ft.
• Bedrooms and bathrooms: Not permitted in a bedroom or bathroom. The manual prohibits unvented heaters over 10,000 Btu/hr in bedrooms and over 6,000 Btu/hr in bathrooms, and every model on this page is rated above 10,000 Btu/hr.
• Gas input (BTU/hr): 18": 36,000 max / 25,000 min; 24": 38,000 max / 26,500 min; 30": 40,000 max / 28,000 min (same for natural gas and propane).
• Power: Intermittent pilot (electronic) ignition; the control module uses 4 AA batteries.
• Installation: Must be installed by a qualified installer per the installation manual and local codes.
