DuraVent 3"-12" Inner Diameter DuraFlex SS Connector



Overview

DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.



A Flexible Solution For Any Installation

Having a choice when making a decision is important. DuraVent offers the installer a range of products to make the right decision for the right situation. There are four different DuraFlex liners and a complete selection of DuraFlex universal components. No matter which flexes is right for the situation, there's a DuraVent component to complete the venting system



Features

• Use to connect DuraFlex SS length to an appliance, rigid length, or flex length.
• Drip-free connection.

 Applications:

DuraFlex SW smooth wall flexible relining for a masonry chimney. Use with gas, wood pellet, oil, or wood appliances. Applications include fireplace inserts, furnaces, boilers, and water heaters.



Specifications

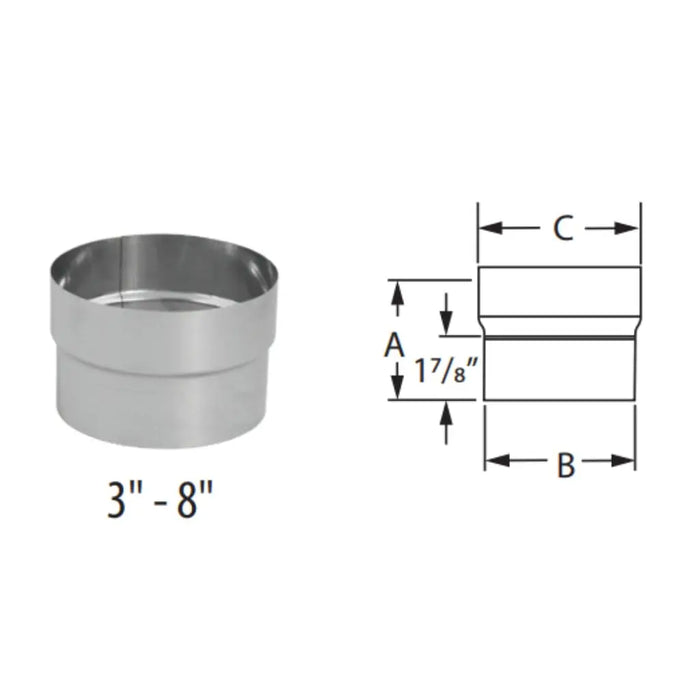

Model	Dimension
3DFS-FC	4.125" (A) x 3" (B) x 3.5" (C)
4DFS-FC	4.125" (A) x 4" (B) x 4.5" (C)
5DFS-FC	4.125" (A) x 5" (B) x 5.5" (C)
55DFS-FC	4.125" (A) x 6" (B) x 5.5" (C)
6DFS-FC	4.125" (A) x 6.5" (B) x 6" (C)
7DFS-FC	4.125" (A) x 7" (B) x 7.5" (C)
8DFS-FC	4.125" (A) x 8" (B) x 8.5" (C)
10DFS-FC	4.5" (A) x 9.75" (B) x 10.375" (C)
12DFS-FC	4.5" (A) x 11.75" (B) x 12.375" (C)
Construction	Single-Wall
Clearance	0” clearance for gas, oil, and pellet applications.
Clearance	1” clearance to masonry for wood-burning
Listings	Listed to UL 1777 and ULC S635 (MH45609).
Warranty	Limited lifetime warranty
