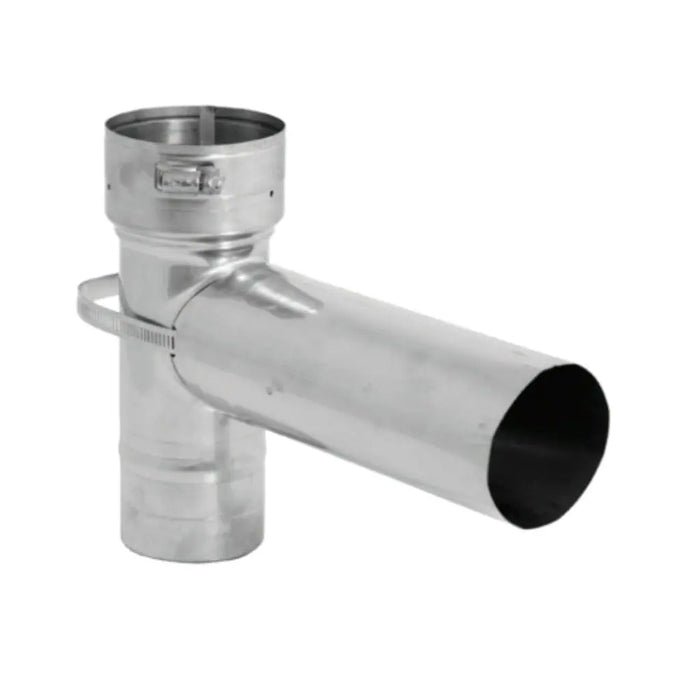

DuraVent 10"-12" Inner Diameter DuraFlex Tee with Removable Snout

Overview

DuraVent is the premier company in the venting industry. With a broad range of engineered venting products, DuraVent has earned its reputation as the industry leader by offering innovative, safe, and professional products for the HVAC and Hearth markets.



A Flexible Solution For Any Installation

Having a choice when making a decision is essential. DuraVent offers the installer a range of products to make the right decision for the right situation. There are four DuraFlex liners and a complete selection of DuraFlex universal components. No matter which flexes is right for the situation, there's a DuraVent component to complete the venting system



Features

• Use as a 90° transition between liner and connector pipe at the wall thimble or rear flue outlet of a heater.
• Removable Snout with internal draw band allows for easier, through-the-wall thimble installation.

 Applications:

DuraFlex SW smooth wall flexible relining for a masonry chimney. Use with gas, wood pellet, oil, or wood appliances. Applications include fireplace inserts, furnaces, boilers, and water heaters.



Specifications

Model	Size
10DFS-TRS	10.3" (A) x 10.2" (B) x 16.5" (C) x 10" (I.D)
12DFS-TRS	12.25" (A) x 12" (B) x 18" (C) x 12" (I.D)
Construction	Single-Wall
Clearance	0” clearance for gas, oil, and pellet applications.
Clearance	1” clearance to masonry for wood-burning
Listings	Listed to UL 1777 and ULC S635 (MH45609).
Warranty	Limited lifetime warranty

Downloads

• Product Catalog
• Instruction Manual



Warning: This product can expose you to Chromium, which is known in the state of California to cause cancer, congenital disabilities, or other reproductive harm. For more information, see CA Prop 65 Warning
