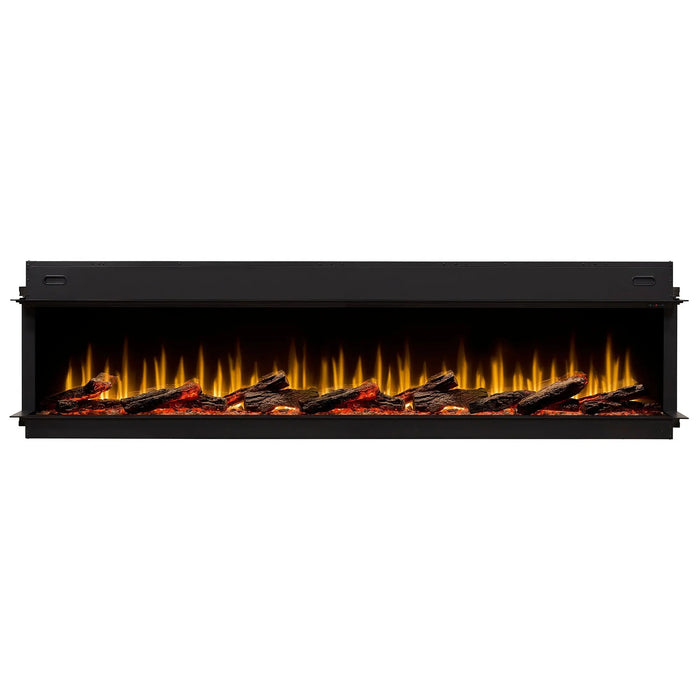

Dimplex Ignite Ultra 100" Built-in Linear Electric Fireplace
The Dimplex Ignite Ultra 100" Built-in Linear Electric Fireplace (model ULT100, Dimplex order number 500003155) represents the pinnacle of modern luxury and design innovation. Featuring Dynamic-Fire Flame Effect and advanced Rhythmic Logs with inner glow technology, it delivers an incredibly realistic fire experience with lifelike logs, synchronized pulsing embers, natural flame hues and authentic crackling wood sounds.
With Quick Connect moveable logs, you can customize the layout for a personalized aesthetic. Designed for flexibility and elegance, it offers multiple installation options — front, bay, or corner — making it the ultimate statement piece for contemporary luxury interiors. At 100" it is the largest fireplace in the Ignite Ultra range.
Key Benefits
-
Modern Elegance
Sleek design and cutting-edge technology create a focal point that exudes modernism.
-
Adaptable Design

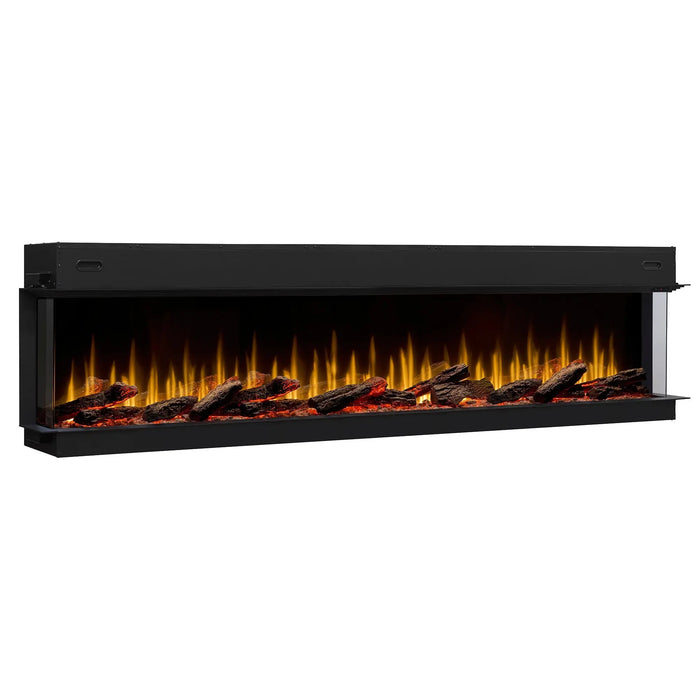

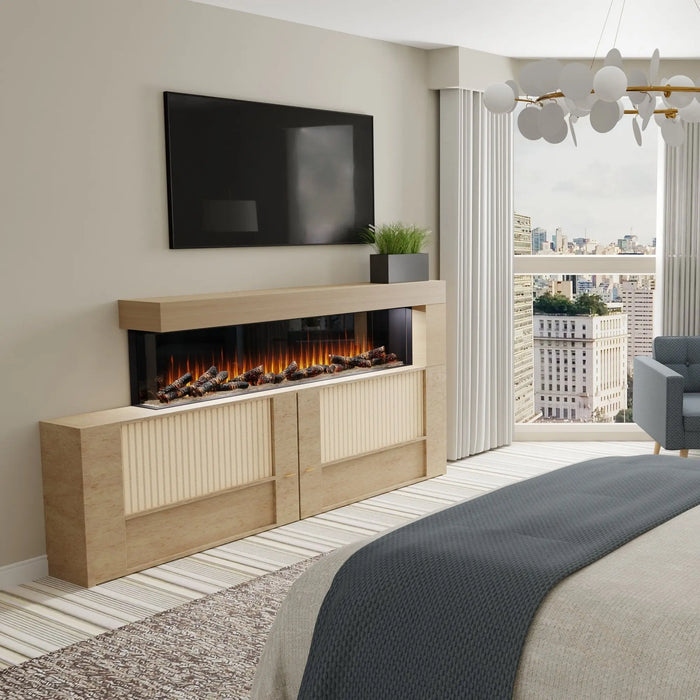

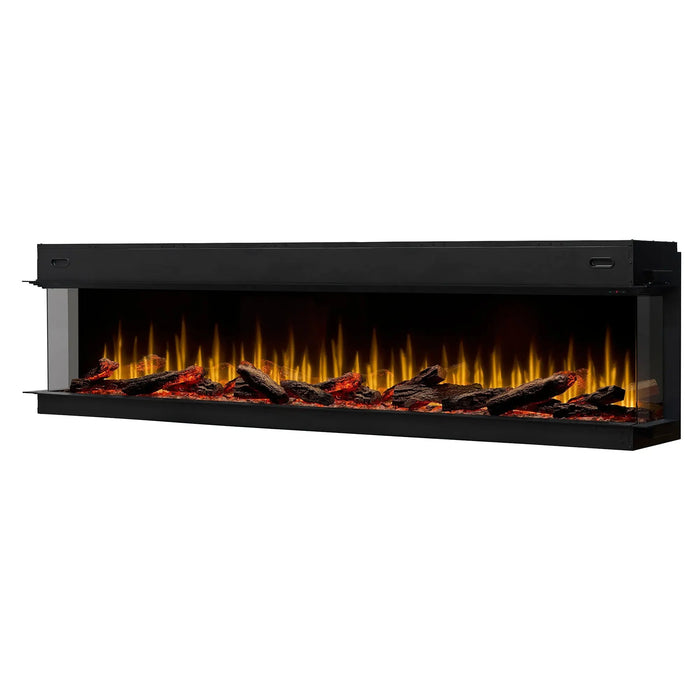

Freedom to fit your vision with five installation choices: front-facing, left-corner, right-corner, bay, or create a sleek modular unit.
-
Natural Hearth
Delivers the most authentic flame and log combination for an unmatched and lifelike fire experience.
Key Features
-
Dynamic-Fire Flame Effect
A remarkably realistic flame effect, patented by Dimplex.
-
Rhythmic Inner Glow Logs
Quick connect, moveable logs enhanced with inner glow technology that pulse in rhythm with the dancing flames.
-
Comfort$aver® Heating
On-demand supplemental heating for up to 1,000 sq ft, with the option to turn the heat off and enjoy the flames year-round.
-
Crackling Sound Effects
The soothing sound of a crackling natural wood fire.
Will It Fit? Rough Opening
Frame to these dimensions. The Ignite Ultra is a built-in unit, so the opening has to be right before the unit arrives:
| Rough opening width |
100 3/4" (256 cm) |
| Rough opening height |
28" (71.1 cm) |
| Rough opening depth |
15" (38.1 cm) |
| Appliance dimensions, without trim (W x H x D) |
100 5/8" x 27 1/2" x 14 1/2" |
| Viewing area (W x H x side glass depth) |
100" x 17" x 7 11/16" |
| Recommended maximum mounting height from the floor |
40" (102 cm) |
The 7-11/16" figure is the depth of the side glass, which is what you see in a corner or bay installation.
Electrical Requirements
Worth settling with your electrician before the wall is closed up — the Ignite Ultra runs at either voltage, but only the 120 V option can be corded.
| Voltage |
120 V (3-wire) or 240 V (4-wire) |
| Power output — 120 V |
1,500 W (5,118 BTU/h) |
| Power output — 240 V |
2,500 W (8,530 BTU/h) |
| Current draw |
12.5 A at 120 V / 10.4 A at 240 V |
| Circuit |
Dedicated, properly fused 15 A circuit recommended, rated for the voltage used |
| Connection — 120 V |
Hardwired or power cord |
| Connection — 240 V |
Hardwired only |
| Supplemental heating area |
Up to 1,000 sq ft |
Note the 12.5 A draw at 120 V against a 15 A circuit — this needs its own dedicated circuit, not a shared one.
Clearances
| Minimum clearance above the fireplace to the ceiling |
24" (61 cm) |
| Combustible materials in front (furniture, bedding, curtains, papers) |
3 ft (0.9 m) minimum |
| Surface temperature 10" above the unit, in normal heat mode |
Does not exceed 40 °C (104 °F) |

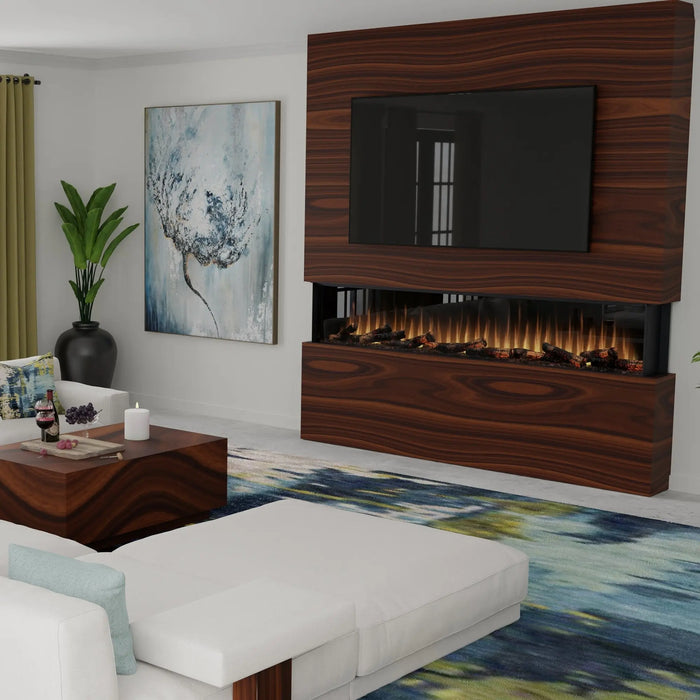

That last figure is the one people ask about when planning a TV above the fireplace. Check your TV manufacturer's own ambient temperature limit as well.
Specifications
| Model |
ULT100 |
| Dimplex order number |
500003155 |
| UPC |
781052153004 |
| Fuel |
Electric — no venting, gas line or chimney required |
| Installation / view type |
Built-in; 1-sided, 2-sided or 3-sided — front-facing, left corner, right corner, bay, or modular |
| Colour |
Black |
| Flame effect |
Dynamic-Fire, with Rhythmic inner-glow logs |
| Adjustable flame speed and flame colour |
Yes |
| Flame-effect-only mode |
Yes — run the flames with the heater off, year-round |
| Heat source |
Comfort$aver® fan heater with variable thermostat |
| Sound |
Crackling wood sound effects, built-in speakers |
| Controls |
On-appliance, remote, and Wi-Fi via the Dimplex Flame Connect app |
| Lamp type |
LED |
| Warranty |
5 years from date of first purchase, including on-site service |
